Air Turbine Dental Colorful Color Handpiece Kit High Low Speed Led

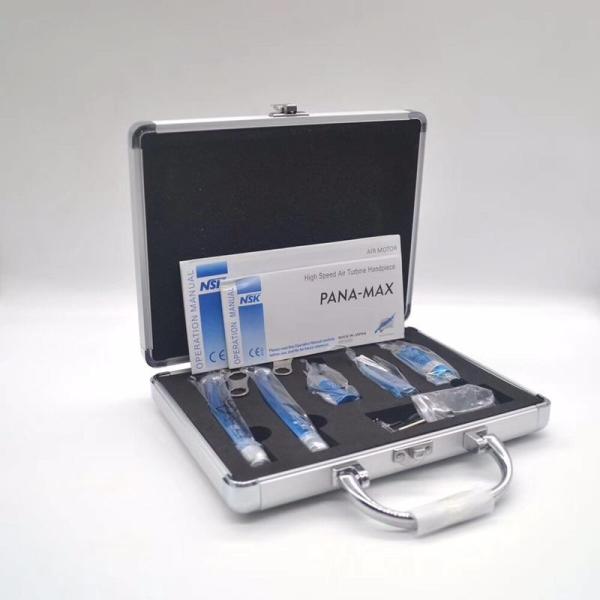

Dental Handpiece Kit
2 High speed handpiece
1 Low speed handpiece
Spare parts
Metal box
Advantage:
1. Patent technology: Self-lubricating of Air motor
2. Water and air are separately divided
3. With dust-proof cover on the head of straight handpiece
4. Distinctive design of the appearance
5. Very cool water spray function
6. Adopts imported bearing on Contra angle.
For high speed handpiece:
| Air pressure | 0.22-0.24Mpa |
| Rotation speed | 320,000-380,000rpm |
| Applicable bur size | Φ1.59mm-Φ1.60mm*21mm-23mm |
| Noise | ≤68dB |
For low speed handpiece set:
| Ratio | 1:1 |
| System | External cooling system |
| Air pressure | 0.3-0.35Mpa |
| Rotation speed | 20,000-30,000rpm |
| Noise | ≤70dB |
| Specification | |
| Air motor | Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Midwest 4 holes and Borden 2holes
Max speed 20,000 min-1 |
| Contar angel handpiece | Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch Autoclavable 135°C Compatible with E-type motors |
| Straight head | Working pressure: 0.3MPa (4-hole);
0.25MPa (2-hole)
Revolution: about 22000-27000r/min
Noise: ≤68dB
Air consumption: about 56L/min
Ratio: 1:1
Max speed of contra angle: 25000rpm/min. |
Model NO. | High Spped Turbine Handpiece |
Contains | 2high speed +1 low speed |
Button options | Press button, key button |
Wholes | 2 or 4 options |
Rotating Speed | High-Speed Handpiece |
Head diameter | 11.4mm |
Application | Children, adult |
At present, we are dealing on seven categories like dental
equipment, dental orthodontic series, dental supplies, dental
material, dental decoration and dental accessories etc, amounts to
more than six hundreds kind of products, such as NSK/KAVO dental
handpiece, woodpecker brand of curing light and apex locator series
ect. autoclave, water distiller, ultrasonic Scaler, orthodontic
arch wire and bracket, dental study model, dental chair etc.
