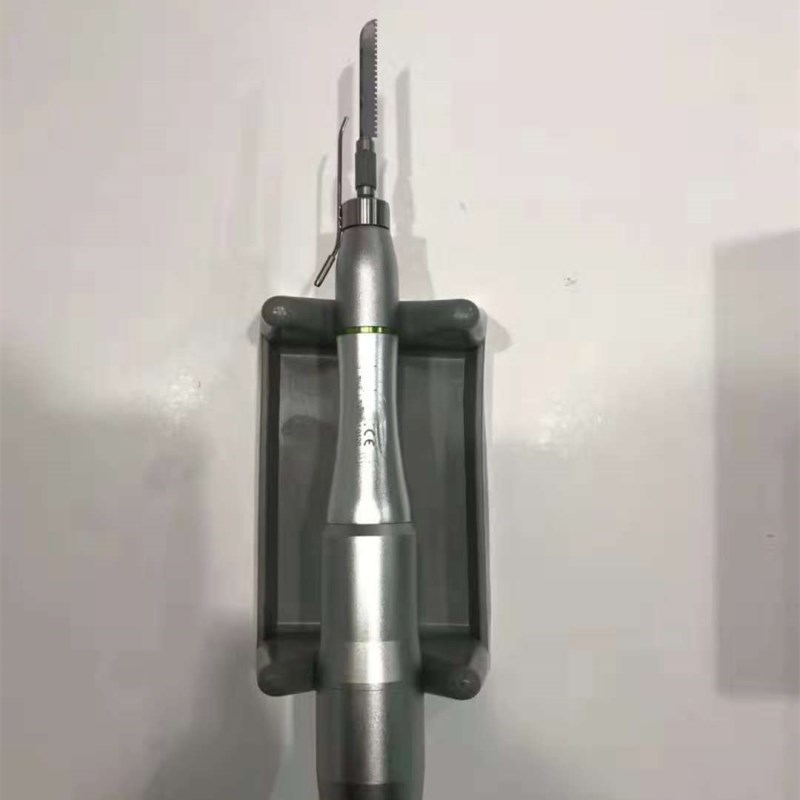

4: 1 Reduction Micro Saw Reciprocating Surgery Dental Handpiece
/Dental Implant Motor System Use
Name: 4:1 Low Speed Dental Drill Straight Handpiece--3°
left&right movement
Order code: BG-SQN-02C
Features:
1. Designed for osteotomy in oral surgery, for more precise and
safer operations.
2. 4:1 reduction
3. External irrigation
4. Max speed: 12,600rpm4:1 Saw Handpiece 1.8mm UP&DOWN
Name: 4:1 Low Speed Dental Saw Drill Straight Handpiece--1.8mm
UP&DOWN movement
Order code: BG-SQN-01C
Features:
1. Designed for osteotomy in oral surgery, for more precise and
safer operations.
2. 4:1 reduction
3. External irrigation
4. Max speed: 12,600rpm
1:1 Saw Handpiece 17° left & right
Name: 1:1 Low Speed Dental Drill Straight Handpiece--17° left &
right movement
Order code: BG-SQN-03C
Features:
1. Designed for osteotomy in oral surgery, for more precise and
safer operations.
2. 1:1 Speed
3. External irrigation
4. Max speed: 40,000rpm
Application domain:dental, surgical
Movement: left&right
Operation:4:1
Other characteristics: saw
Rotation speed:5,000rpm
Description:
Working in all directions
Our saw handpieces SQN-01C,SQN-02C,SQN-03C offer a perfect and
long-term solution
for osteotomy or bone removal with sagittal,
oscillating or reciprocating movement.
No matter what your requirements or those of your patients, Tealth
can fulfil them.
Your advantages at a glance Innovative saw-blade shape for
outstanding cutting performance One drive speed for all 3 saw types
Durable and robust due to high-grade
Stainless steel
For sagittal, oscillating or reciprocal movement
Range of saw blades for all surgical applications
Low vibration and exceptionally quiet
Can be dismantled for thorough cleaning
Instruction:
After each treatment,Sterilizing handpiece in autoclave according
to the following steps:
1. Remove the bur and brush clean handpiece, clean outside of
handpiece with an alcohol solution.
2. Lubricate handpiece, each times drop two drops inside of air
inlet pipe.
3. Place into autoclaving pouch and mark.
4. Autoclave the handpiece for 12 min. at 135ºC.
Designed for osteotomy in oral surgery ,for more precise and safer
operations
Technical Specifications:
Action:1.8mm Vertical Reciprocating Action
Spray Nozzle: External
Max speed: 7500r/min
Gear ratio: 4:1 reduction
Instruction:
After each treatment,Sterilizing handpiece in autoclave according
to the following steps:
1. Remove the bur and brush clean handpiece, clean outside of
handpiece with an alcohol solution.
2. Lubricate handpiece, each times drop two drops inside of air
inlet pipe.
3. Place into autoclaving pouch and mark.
4. Autoclave the handpiece for 12 min. at 135℃.
