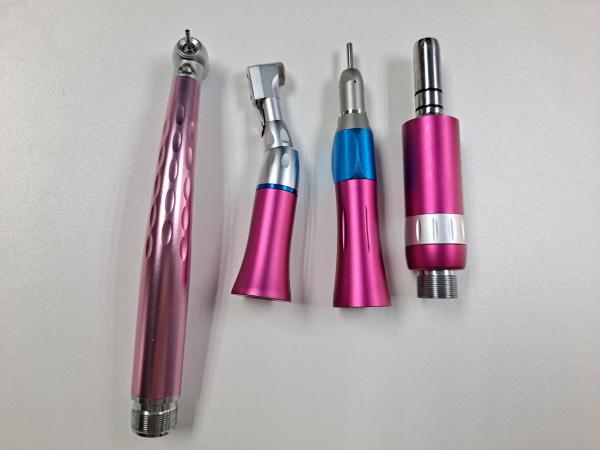

Colorful Dental Surgical Handpiece LED Set High/Low Speed Handpiece
for Dental Clinic
2 High speed handpiece
1 Low speed handpiece
Spare parts
Metal box
Advantage:
1. Patent technology: Self-lubricating of Air motor
2. Water and air are separately divided
3. With dust-proof cover on the head of straight handpiece
4. Distinctive design of the appearance
5. Very cool water spray function
6. Adopts imported bearing on Contra angle.
For high speed handpiece:
| Air pressure | 0.22-0.24Mpa |
| Rotation speed | 320,000-380,000rpm |
| Applicable bur size | Φ1.59mm-Φ1.60mm*21mm-23mm |
| Noise | ≤68dB |
For low speed handpiece set:
| Ratio | 1:1 |
| System | External cooling system |
| Air pressure | 0.3-0.35Mpa |
| Rotation speed | 20,000-30,000rpm |
| Noise | ≤70dB |
| Specification | |
| Air motor | Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Midwest 4 holes and Borden 2holes
Max speed 20,000 min-1 |
| Contar angel handpiece | Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch Autoclavable 135°C Compatible with E-type motors |
| Straight head | Working pressure: 0.3MPa (4-hole);
0.25MPa (2-hole)
Revolution: about 22000-27000r/min
Noise: ≤68dB
Air consumption: about 56L/min
Ratio: 1:1
Max speed of contra angle: 25000rpm/min. |
Model NO. | Dental Surgical Handpiece |
Contains | 2high speed +1 low speed |
Button options | Press button, key button |
Wholes | 2 or 4 options |
Rotating Speed | High-Speed Handpiece |
Head diameter | 11.4mm |
Application | Children, adult |
