Dental Surgical Handpiece NSK Pana Max Low Speed External Water

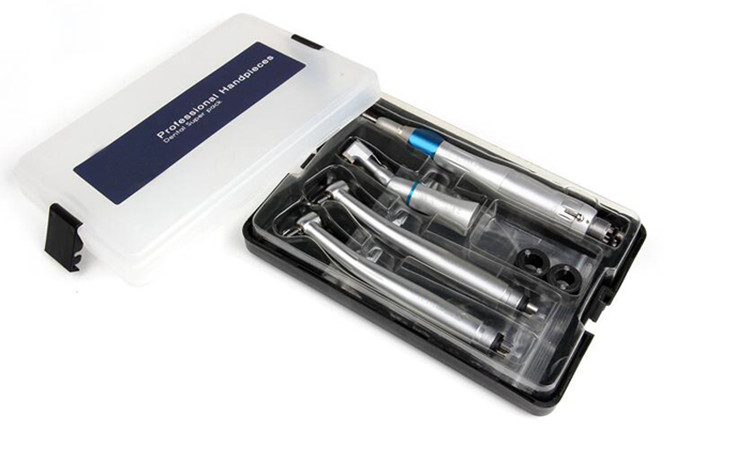

Contra Angle High Speed Handpiece set
student air turbine dental handpiece set,with:
2pcs push button high speed handpiece
1 set of low speed handpiece (contr angle,straight,air motor)
Techinical of Dental Surgical Handpiece:
Working Pressure:0.3-0.3Mpa (Low Speed 0.3-0.345Mpa)Working Water Pressure:198kpa(2kg)
Speed (High Speed Handpiece ):≥350,000rpm
Speed(Low Speed Handpiece ):about 20,000rpm
Colling method:Three way water spray
interface: ISO international standard interface 2 holes /4 holes
optional
Low Speed contra angle handpiece / straight handpiece Etype
interface
Packing list of Dental Surgical Handpiece:
Max 2 Style Handpiece x1
Max 3 Style Handpiece x1
Low Speed Handpiece Set x1
Packing Box x1
Air motor
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- Midwest 4 holes and Borden 2holes
- Max speed 20,000 min-1
Contar angel handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- Compatible with E-type motors
Straight head
- Working pressure: 0.3MPa (4-hole);
- 0.25MPa (2-hole) (Measure meter is installed at the end of air
motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise
or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.
For high speed handpiece:
| Air pressure | 0.22-0.24Mpa |
| Rotation speed | 320,000-380,000rpm |
| Applicable bur size | Φ1.59mm-Φ1.60mm*21mm-23mm |
| Noise | ≤68dB |
For low speed handpiece set:
| Ratio | 1:1 |
| System | External cooling system |
| Air pressure | 0.3-0.35Mpa |
| Rotation speed | 20,000-30,000rpm |
| Noise | ≤70dB |
| Specification | |
| Air motor | Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Midwest 4 holes and Borden 2holes
Max speed 20,000 min-1 |
| Contar angel handpiece | Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch Autoclavable 135°C Compatible with E-type motors |
| Straight head | Working pressure: 0.3MPa (4-hole);
0.25MPa (2-hole)
Revolution: about 22000-27000r/min
Noise: ≤68dB
Air consumption: about 56L/min
Ratio: 1:1
Max speed of contra angle: 25000rpm/min. |
At present, we are dealing on seven categories like dental
equipment, dental orthodontic series, dental supplies, dental
material, dental decoration and dental accessories etc, amounts to
more than six hundreds kind of products, such as NSK/KAVO dental
handpiece, woodpecker brand of curing light and apex locator series
ect. autoclave, water distiller, ultrasonic Scaler, orthodontic
arch wire and bracket, dental study model, dental chair etc.
