Imaging Handheld Digital X Ray Machine Wireless Medical X-Ray
Equipments
Product introduction:
This model combines the advantages of similar products found at
home and abroad; it eliminates the shortcomings of the on-frequency
X-ray machine (high current intensity and excess amounts of scrap
x-rays).Using a Toshiba 0.3 micro-focus tube.The tube voltage
frequency of this machine is 30 KHz,and the tube current is 1 MA.
The radiation scope is at an angle of 24 degrees, located within a
distance of 1.2 meters ahead. This is an innovative Chinese design
named the ""Green X-ray Machine.""
Warning: After turning on the machine, wait for 1 minute, the
voltage can be stabilized before normal use;After each photo, you
have to wait 30 seconds before you can take a normal photo.
TECHNICAL SPECIFICATIONS:
| Tube Voltage | 65kv |
| Tube Current | 1mA |
| Time Exposure | 0.1~~1.8s |
| High pressure generator | 30kHz DC |
| Rated Power | 60w |
| Focal Spot To Skin Distance | >20CM |
| Focus Spot Size | 0.3mm(TOSHIBA) |
| Charger Input Voltage | AC110V~220V |
| Supply Frequency | 30Hz |

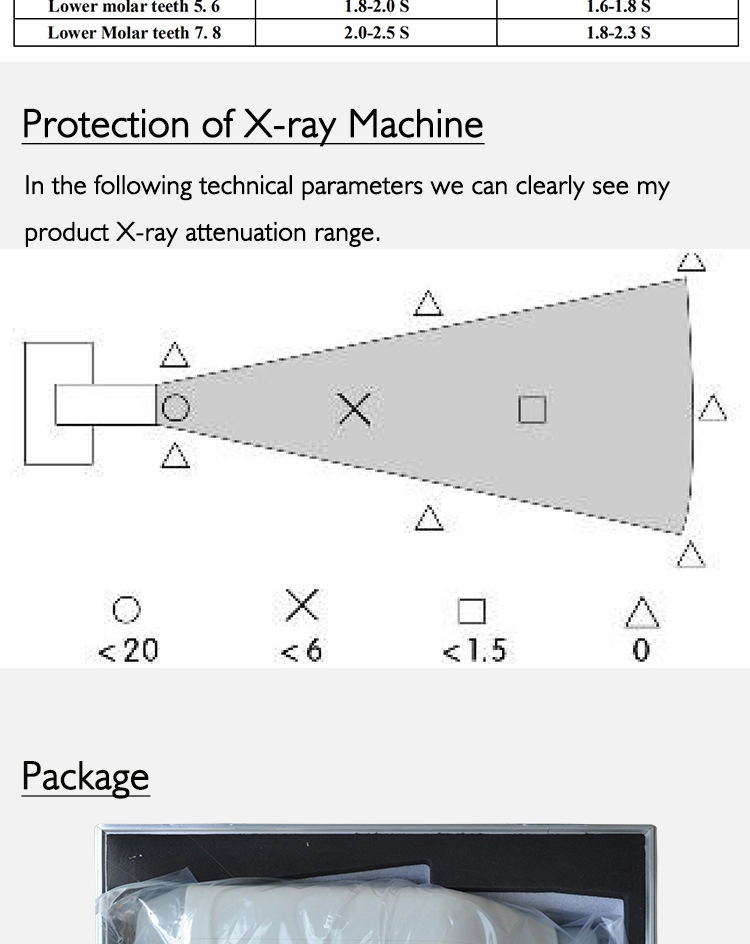

| Radiation Leakage | <20ugy/h |
| Battery | 24V DC 2600MA |
| Weight | 4.3KG |
| Dimensions | 37 cm×31 cm×28cm (L×W×H) |

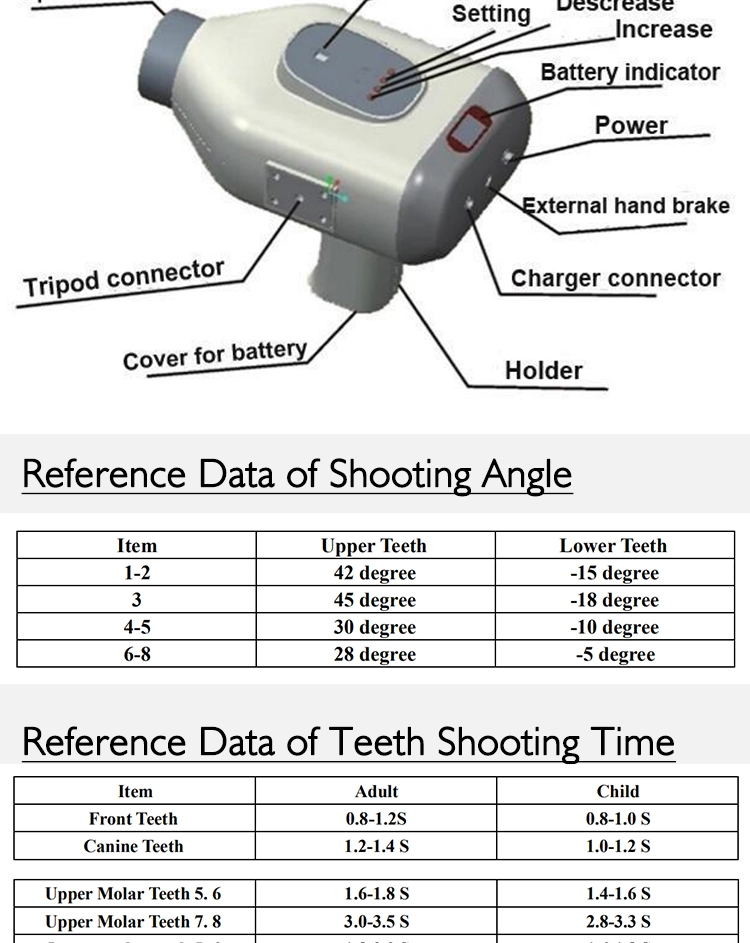

Reference of the Angles :
| Tooth | Upper | Lower |
| January 2 | 42 | -15 |
| 3 | 45 | -18 |
| April 5 | 30 | -10 |
| June 8 | 28 | -5 |
Reference of the time of exposure:
Packing List:
Main machine 1pcs
Power line 1pcs
User manual 1pcs
